Features (Premium Version):

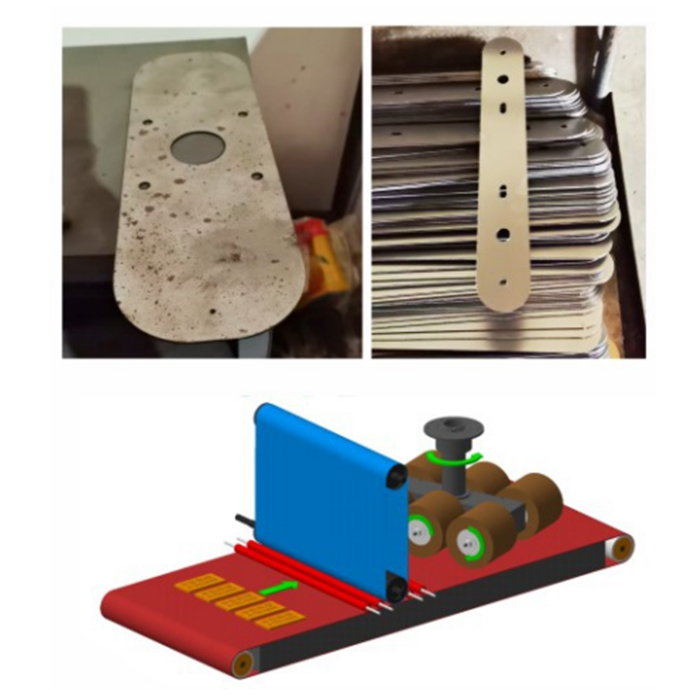

?Designed for sanding a wide range of materials,including metal, solid wood, and panel furniturecomponents.
?Equipped with a vacuum and magneticcombined table system, providing strong andreliable workpiece holding for enhanced precisionand safety.
| Technical Parameters |
Model | P0L508 |
Max.processingwidth | 1300mm |
Workpiece thicknessrange | 1-100mm |
Min. processing size | Sand belt area: L220×W30×T1mm |
Conveyormotorpower | 2.2kw |
Conveying speed | 0.5-8m/min |
Sanding belt motor power | 11kw |
Sandingbelt linearspeed | 13m/s |
Sandingrollerrotatingpower | 1.5kw×3 |
Rollerbrushspeed | 0-1600r/min |
Revolution speed | 0-60r/min |
Negativepressurepower | 11kw |
Powersupplyvoltage | 380V 50Hz |
Air source pressure | 0.6-0.8Mpa |
Total weight | 3000kg |
Machine dimensions | 3040×2200×2600mm |
