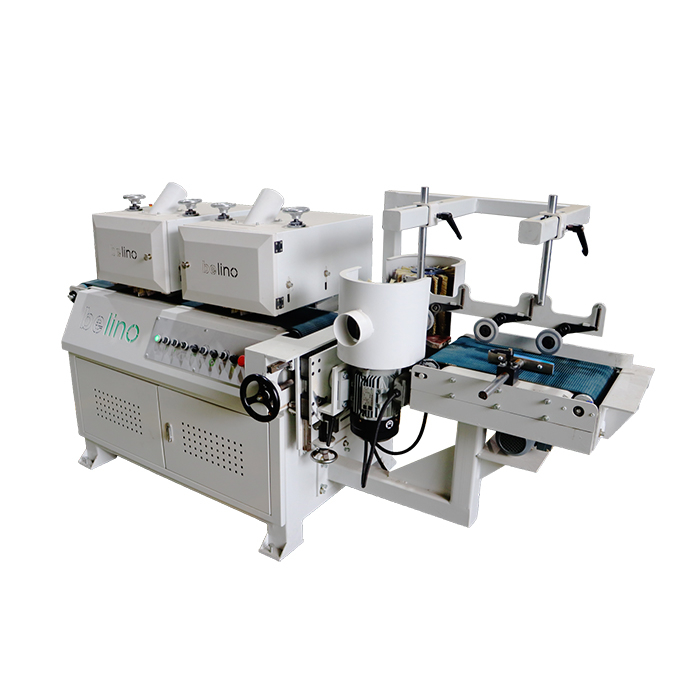

Features
This equipment wth automatic feeding system, three surfaces sanding and polishing at the same time, greaty mprove production effclency Suitable for al kinds of solid wood, MDF, veneer board and so on straightline wood (such as door edge line, skirting line, picture frame, etc.l.L-shaped wood line and long plank of regular surface, specilal-shaped surface, plane and curved bare wood, pant sanding. polishing, etc.
| Technical Parameters |
Model | SMS250-W2C2 |
Processing Width | 30-250mm |
Min. Processing Length | 700mm |
Processing Thickness | 10-80mm |
Conveyor Motor Power | 0.75kw |
Motor Power of Edge Side Sanding Unit | 0.75kw×2 |
Motor Power of Upside Sanding Unit | 1.5kw×2 |
Supply Power | 380V 50Hz |
Diameter of Suction Inlet | ?100mm×4 |
Total Power | 5.72kw |
Dimension of Machine | 2460×1250×1360mm |
Weight of Machine | 750kg |
